PC Greenhouse

Triple A roof or Venlo Roof structure with prefabricated design PC sheet with over 10 years service life 88% light transmission, Double layer or multi-layers available Strong stable structure design with 400g/m2 zinc coat steel pipes in hot SENDZIMIR galvanized treatment  Optimal heat retention & energy-saving, Hail storm resistance Special for desert area and cold area, like Japan, Middle East.. All systems for climate control, hydroponics system are available according to local weather and growing needs


Message

Product Description

Polycarbonate Sheet Greenhouse

Trinog Design

  • Triple A roof or Venlo Roof structure with prefabricated design
  • PC sheet with over 10 years service life
  • 88% light transmission, Double layer or multi-layers available
  • Strong stable structure design with 400g/m2 zinc coat steel pipes in hot SENDZIMIR galvanized treatment
  • Optimal heat retention & energy-saving, Hail storm resistance
  • Special for desert area and cold area, like Japan, Middle East..
  • All systems for climate control, hydroponics system are available according to local weather and growing needs



Structural Characteristics

No. Item Specification
1 Span Size 8/9.6/12m
2 Bay size 3.2/4m
3 Section Size 4/4.5m
4 Gutter Height 3-6.5m
5 Cover Material PC sheet, fixed by aluminum profiles



Sketch Map

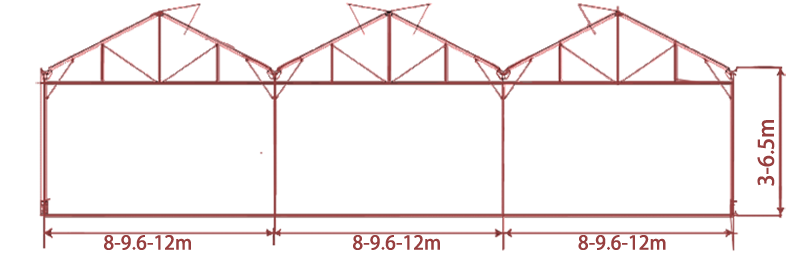

--Venlo Roof PC Greenhouse Diagram



--Triple A  Roof PC Greenhouse Diagram
