EM Greenhouse

EM greenhouse is design to connect two or more tunnel film greenhouse with drainage gutter. The installation work and design can be the same as light tunnel one, but it can save land and increase land use rate. Also with large growing space for better climate control and stable climate environment for plants. Advantages Economical and low price, good choice for large scale farm in lower investment Gothic roof, simple structure, easy assembly, no concrete foundation needed Cover Material : HDPE/HDPO extruding film, 88-90% light transmission,anti-drip, anti-UV, high light diffusion available Steel pipe design, with no welding onsite and hot galvanized pipe treatment


Message

Product Description

EM Greenhouse -- Multispan Tunnel

Trinog Design

EM greenhouse is design to connect two or more tunnel film greenhouse with drainage gutter. The installation work and design can be the same as light tunnel one, but it can save land and increase land use rate. Also with large growing space for better climate control and stable climate environment for plants.

Advantages

  • Economical and low price, good choice for large scale farm in lower investment
  • Gothic roof, simple structure, easy assembly, no concrete foundation needed
  • Cover Material : HDPE/HDPO extruding film, 88-90% light transmission,anti-drip, anti-UV, high light diffusion available
  • Steel pipe design, with no welding onsite and hot galvanized pipe treatment

Structural Characteristics:

Span width(m)

Top height(m)

Roof configuration

Opened vent size (m)

Side wall vent pattern

6

3-4

--One side fixed roof vent

--Motored or manual double side roof vents by rolling up machine

--No vents

1.1-1.2m on roof or customized

--Rolling up vents by manual

--EM GreenhouseAdvice to cover open vent by insect net

8

9

Sketch Map:

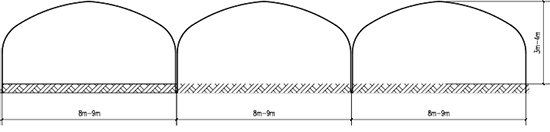

1、No vent

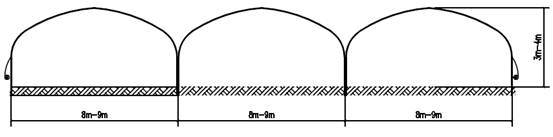

2、Side Wall roll-up vent: Manual or Motor drive for option

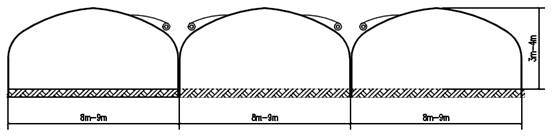

3、Rolling Up Roof vent: Manual or Motor drive for option

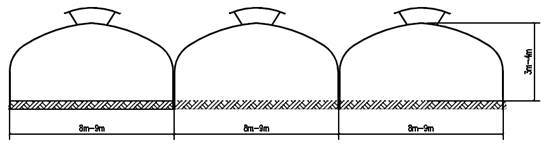

4、Fixed Roof  Vent-- Single or double roof
